IDEA是Java最常用的開發工具，而Docker是當下最火的部署容器。

1.配置docker遠程連接端口

vi /usr/lib/systemd/system/docker.service

找到 ExecStart，在最后面添加 -H tcp://0.0.0.0:2375 -H unix://var/run/docker.sock

重啟docker

systemctl daemon-reload systemctl start docker

開放端口2375

firewall-cmd --zone=public --add-port=2375/tcp --permanent2.IDEA安裝Docker插件

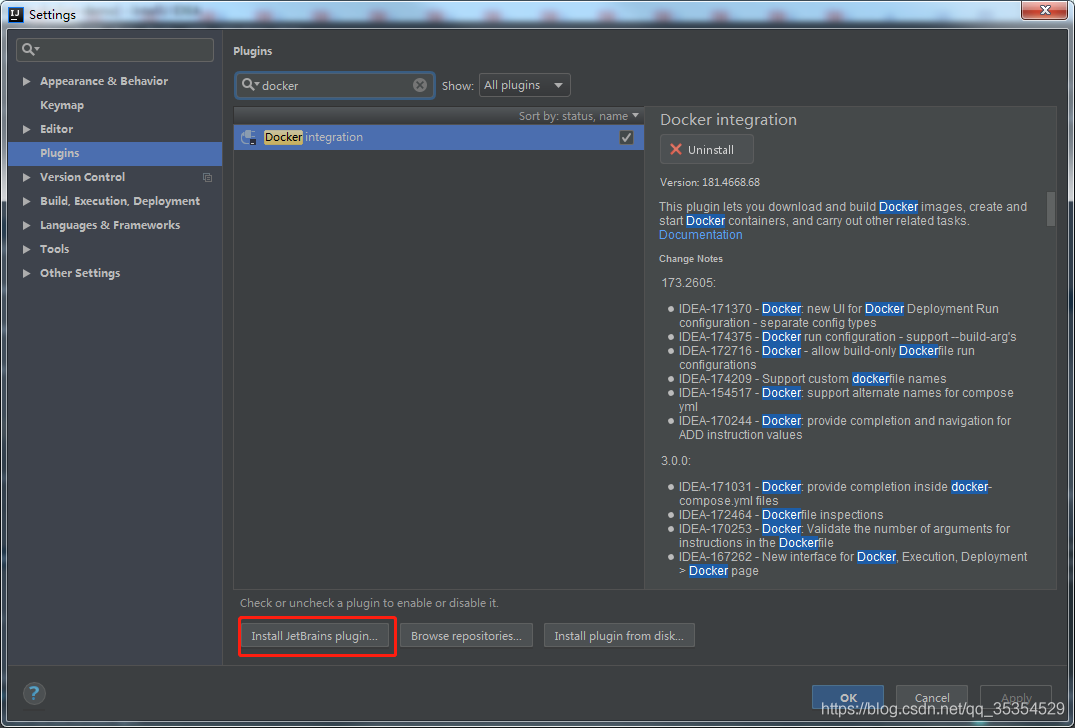

1. File->Settings->Plugins 搜索 docker integration

安裝成功后重啟IDEA

3.創建Springboot項目，配置連接遠程docker pom.xml

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.2</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.docker</groupId> <artifactId>idea-docker-demo</artifactId> <version>0.0.1-SNAPSHOT</version> <name>idea-docker-demo</name> <description>Demo project for Spring Boot</description> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <docker.image.prefix>com.docker</docker.image.prefix> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <!-- Lombok --> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> </dependency> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>1.2.17</version> </dependency> </dependencies> <build> <plugins> <plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId> </plugin> <plugin><groupId>com.spotify</groupId><artifactId>docker-maven-plugin</artifactId><version>1.0.0</version><configuration> <dockerDirectory>src/main/docker</dockerDirectory> <resources> <resource> <targetPath>/</targetPath> <directory>${project.build.directory}</directory> <include>${project.build.finalName}.jar</include> </resource> </resources></configuration> </plugin> <plugin><artifactId>maven-antrun-plugin</artifactId><executions> <execution> <phase>package</phase> <configuration> <tasks><copy todir='src/main/docker' file='target/${project.artifactId}-${project.version}.${project.packaging}'></copy> </tasks> </configuration> <goals> <goal>run</goal> </goals> </execution></executions> </plugin> </plugins> </build></project>

application.properties

server.port=8887logging.config=classpath:logback.xmllogging.path=/home/docker_demo/app/logs/

logback.xml

<?xml version='1.0' encoding='UTF-8'?><configuration debug='false' scan='true' scanPeriod='1 seconds'> <contextName>logback</contextName> <property name='log.path' value='/home/docker_demo/app/logs/docker_demo.log'/> <appender name='console' class='ch.qos.logback.core.ConsoleAppender'> <encoder> <pattern>%d{HH:mm:ss.SSS} %contextName [%thread] %-5level %logger{36} - %msg%n</pattern> </encoder> </appender> <appender name='file' class='ch.qos.logback.core.rolling.RollingFileAppender'> <file>${log.path}</file> <rollingPolicy class='ch.qos.logback.core.rolling.TimeBasedRollingPolicy'> <fileNamePattern>${log.path}.%d{yyyy-MM-dd}.zip</fileNamePattern> </rollingPolicy> <encoder> <pattern>%date %level [%thread] %logger{36} [%file : %line] %msg%n </pattern> </encoder> </appender> <root level='info'> <appender-ref ref='console'/> <appender-ref ref='file'/> </root></configuration>

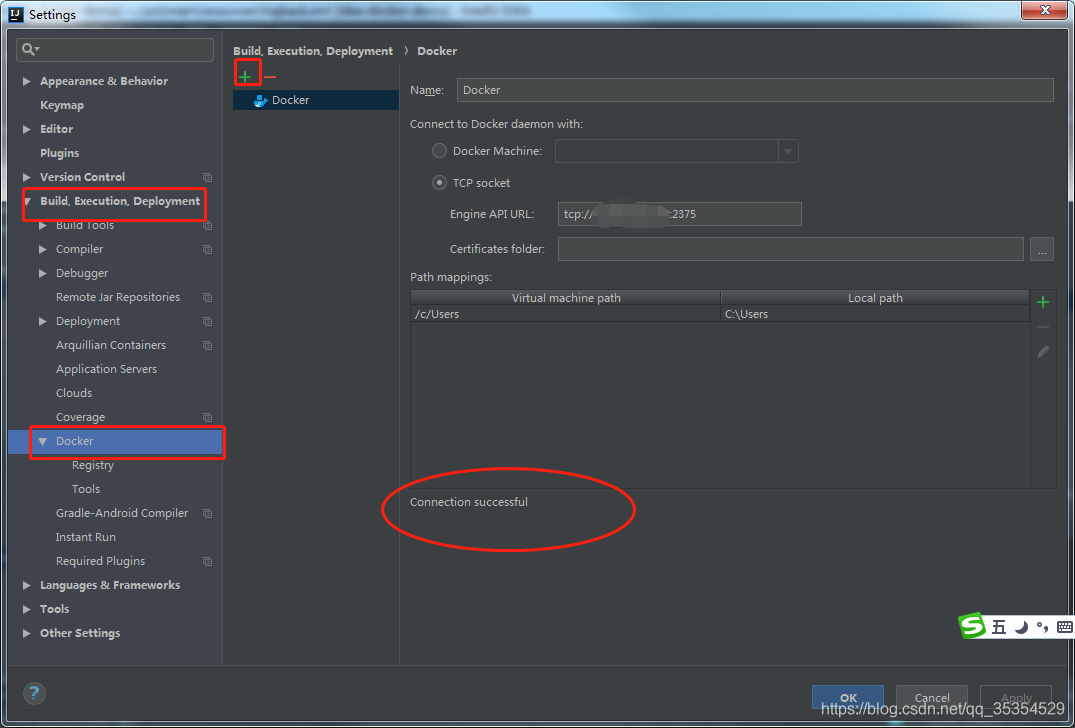

配置docker遠程地址

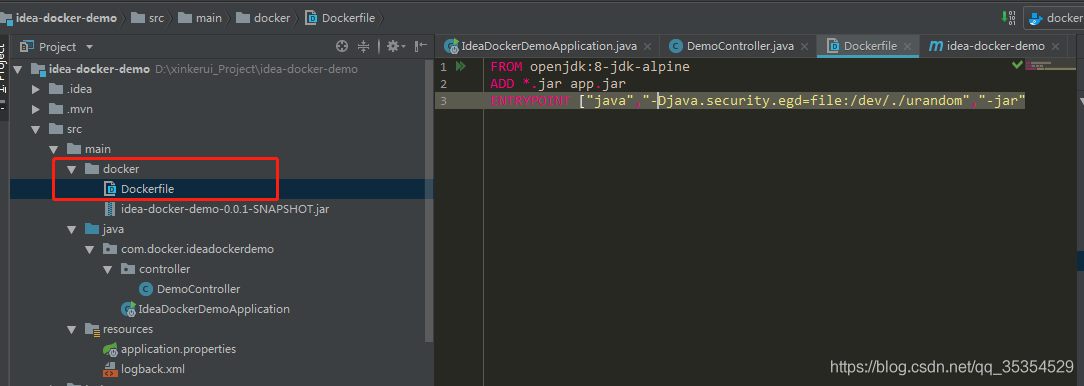

在項目下創建Dockerfile文件

Dockerfile內容:

FROM openjdk:8-jdk-alpineADD *.jar app.jarENTRYPOINT ['java','-Djava.security.egd=file:/dev/./urandom','-jar','/app.jar']

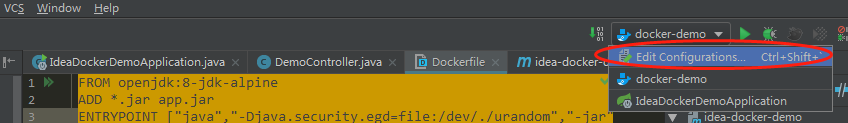

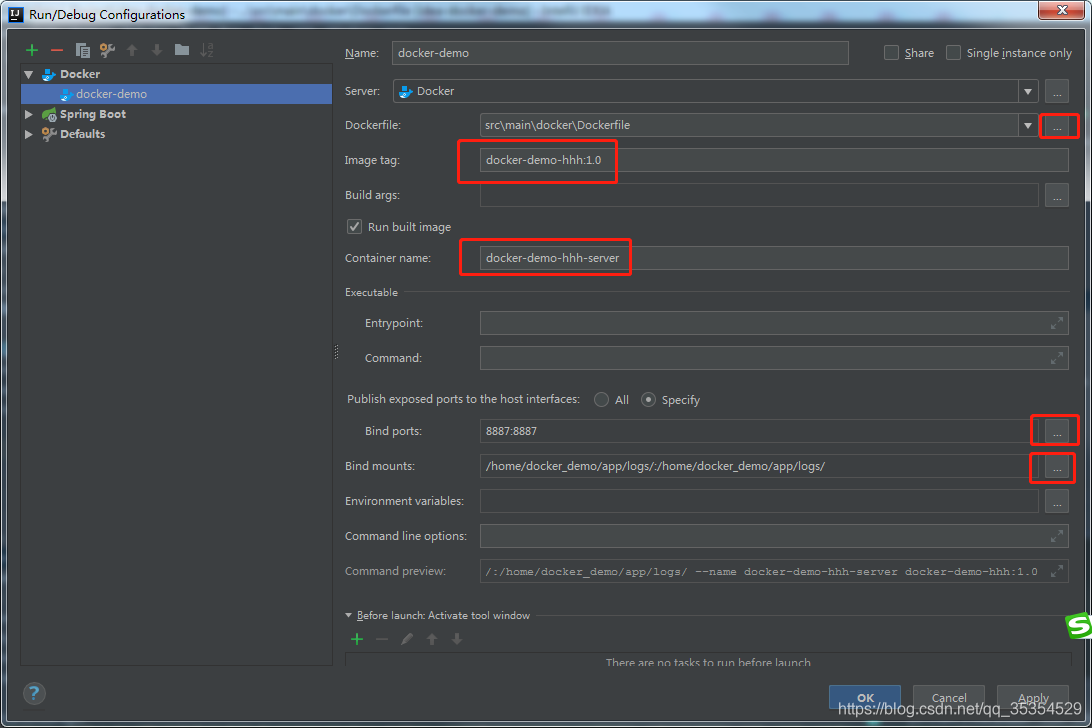

增加docker配置

命令解釋Image tag : 指定鏡像名稱和tag，鏡像名稱為 docker-demo，tag為1.1Bind ports : 綁定宿主機端口到容器內部端口。格式為[宿主機端口]:[容器內部端口]Bind mounts : 將宿主機目錄掛到到容器內部目錄中。格式為[宿主機目錄](méi):[容器內部目錄](méi)。這個springboot項目會將日志打印在容器/home/docker_demo/app/logs/ 目錄下，將宿主機目錄掛載到容器內部目錄后，那么日志就會持久化容器外部的宿主機目錄中。

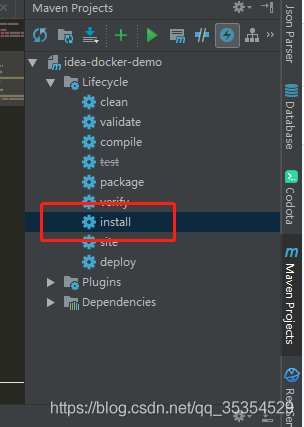

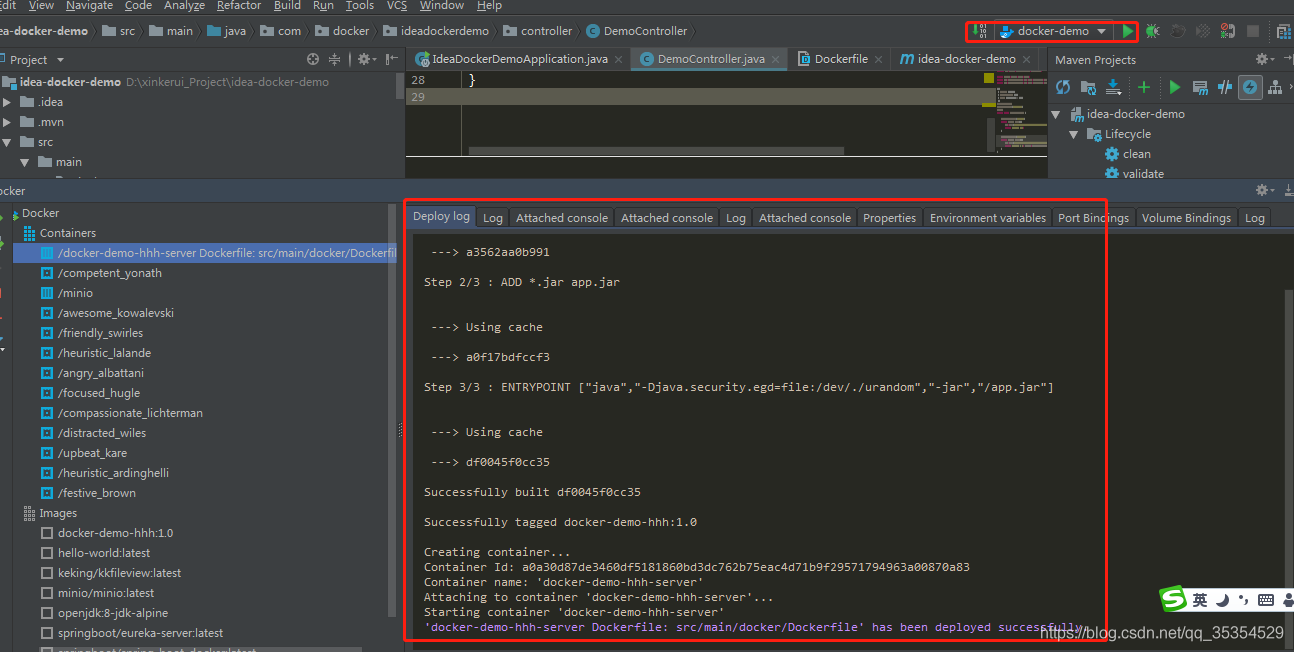

3.項目打包部署到docker

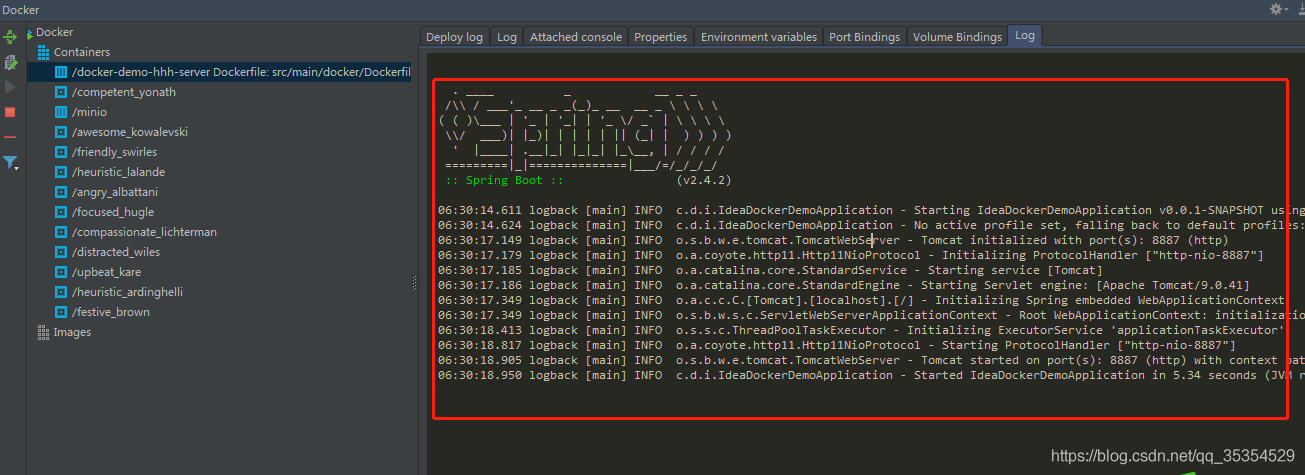

項目啟動成功

可以直接訪問接口,查看日志文件

總結：通過idea部署springboot項目到docker簡單方便！
