目錄

• tomcat簡介
• 安裝tomcat

tomcat簡介

Tomcat是Apache 軟件基金會（Apache Software Foundation）的Jakarta 項目中的一個核心項目，由Apache、Sun 和其他一些公司及個人共同開發而成。由于有了Sun 的參與和支持，最新的Servlet 和JSP 規范總是能在Tomcat 中得到體現，Tomcat 5支持最新的Servlet 2.4 和JSP 2.0 規范。因?yàn)門omcat 技術先進、性能穩定，而且免費，因而深受Java 愛好者的喜愛并得到了部分軟件開發商的認可，成為目前比較流行的Web 應用服務器。
Tomcat 服務器是一個免費的開放源代碼的Web 應用服務器，屬于輕量級應用服務器，在中小型系統和并發訪問用戶不是很多的場合下被普遍使用，是開發和調試JSP 程序的首選。對于一個初學者來說，可以這樣認為，當在一臺機器上配置好Apache 服務器，可利用它響應HTML（標準通用標記語言下的一個應用）頁面的訪問請求。實際上Tomcat是Apache 服務器的擴展，但運行時它是獨立運行的，所以當你運行tomcat 時，它實際上作為一個與Apache 獨立的進程單獨運行的。
訣竅是，當配置正確時，Apache 為HTML頁面服務，而Tomcat 實際上運行JSP 頁面和Servlet。另外，Tomcat和IIS等Web服務器一樣，具有處理HTML頁面的功能，另外它還是一個Servlet和JSP容器，獨立的Servlet容器是Tomcat的默認模式。不過，Tomcat處理靜態HTML的能力不如Apache服務器。目前Tomcat最新版本為9.0。

tomcat就是傳說中的中間件之一，tomcat本身是一個容器，專門用來運行java程序，java語言開發的網頁.jsp就應該運行于tomcat中。而tomcat本身的運行也依賴于jdk環境。

安裝tomcat

//安裝依賴包[root@localhost ~]# yum -y install java-11-openjdk-devel java-11-openjdk

//解壓安裝包[root@localhost ~]# tar xf apache-tomcat-9.0.46.tar.gz[root@localhost ~]# lsanaconda-ks.cfg  apache-tomcat-9.0.46  apache-tomcat-9.0.46.tar.gz  scripts//移動到/usr/local/tomcat下[root@localhost ~]# mv apache-tomcat-9.0.46 /usr/local/tomcat

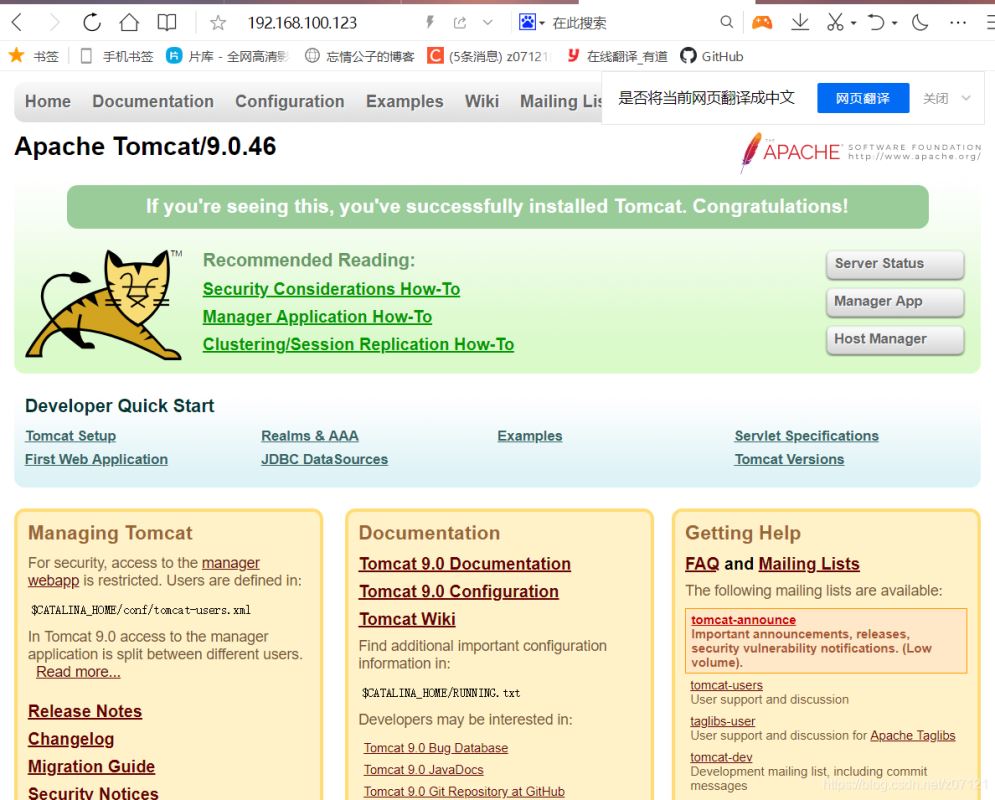

//啟動tomcat[root@localhost tomcat]# /usr/local/tomcat/bin/startup.sh Using CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   Tomcat started.[root@localhost tomcat]# ss -antlState     Recv-Q    Send-Q    Local Address:Port       Peer Address:Port   Process    LISTEN    0 128     0.0.0.0:22      0.0.0.0:* LISTEN    0 128[::]:22 [::]:* LISTEN    0 1    [::ffff:127.0.0.1]:8005  *:* LISTEN    0 100   *:8080  *:*

[root@localhost tomcat]# vim /conf/server.xml//把注釋取消  <!-- Define an AJP 1.3 Connector on port 8009 -->    <Connector protocol="AJP/1.3"       address="::1"       port="8009"       redirectPort="8443" />

[root@localhost tomcat]# ./bin/catalina.sh stopUsing CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   NOTE: Picked up JDK_JAVA_OPTIONS:  --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=java.base/java.util=ALL-UNNAMED --add-opens=java.base/java.util.concurrent=ALL-UNNAMED --add-opens=java.rmi/sun.rmi.transport=ALL-UNNAMED[root@localhost tomcat]# ss -antlState     Recv-Q    Send-Q Local Address:Port Peer Address:Port    Process    LISTEN    0 128  0.0.0.0:220.0.0.0:*  LISTEN    0 128     [::]:22   [::]:*  [root@localhost tomcat]# ./bin/catalina.sh startUsing CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   Tomcat started.[root@localhost tomcat]# ss -antlState     Recv-Q    Send-Q    Local Address:Port       Peer Address:Port   Process    LISTEN    0 128     0.0.0.0:22      0.0.0.0:* LISTEN    0 128[::]:22 [::]:* LISTEN    0 1    [::ffff:127.0.0.1]:8005  *:* LISTEN    0 100       [::1]:8009       [::]:* LISTEN    0 100   *:8080  *:*

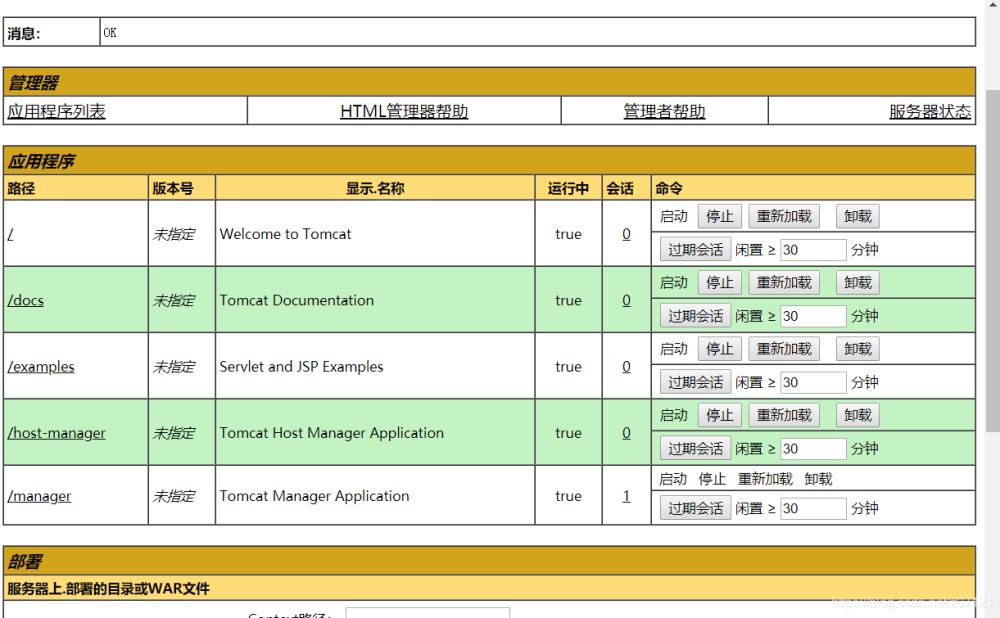

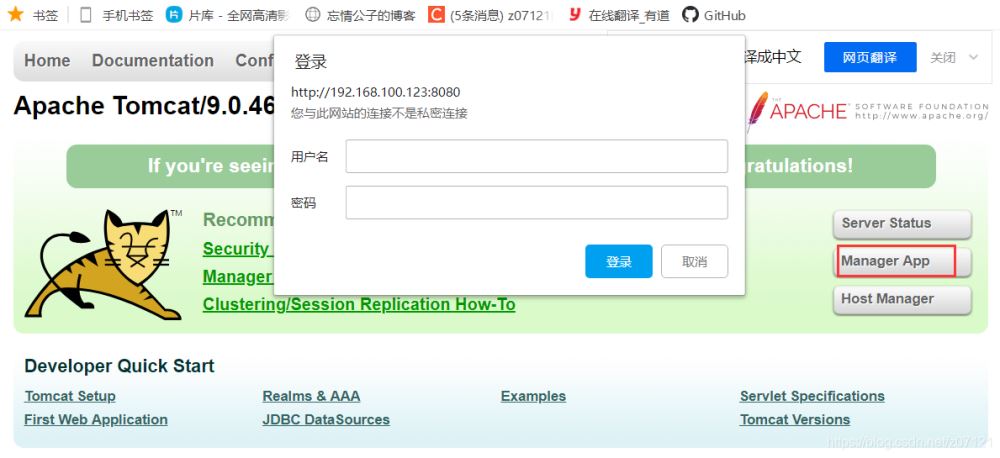

配置管理界面Manager App

[root@localhost conf]# vim tomcat-users.xml//把下列兩行加到這個配置文件的倒數第二行<role rolename="manager-gui"/><user username="tomcat" password="s3cret" roles="manager-gui"/>[root@localhost tomcat]# lsbin   conf     lib      logs    README.md      RUNNING.txt  webappsBUILDING.txt  CONTRIBUTING.md  LICENSE  NOTICE  RELEASE-NOTES  temp work[root@localhost tomcat]# cd webapps/[root@localhost webapps]# lsdocs  examples  host-manager  manager  ROOT[root@localhost webapps]# cd manager/[root@localhost manager]# lscss  images  index.jsp  META-INF  status.xsd  WEB-INF  xform.xsl[root@localhost manager]# cd META-INF/[root@localhost META-INF]# lscontext.xml[root@localhost META-INF]# vim context.xml allow="192\.168\.100\.\d+|127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />在這個文件中加入要訪問的ip網段。

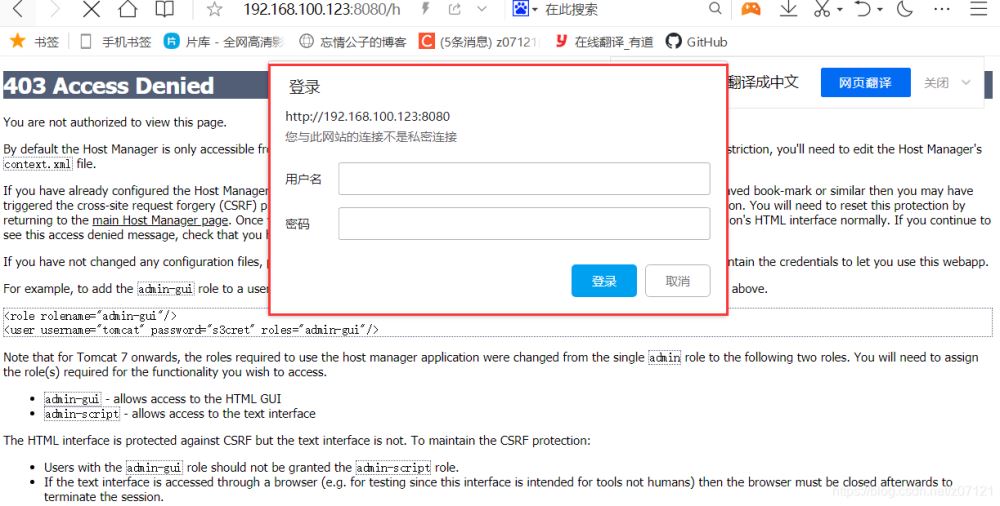

配置Host Manager

[root@localhost conf]# lsCatalina     context.xml   logging.properties  tomcat-users.xsdcatalina.policy      jaspic-providers.xml  server.xml  web.xmlcatalina.properties  jaspic-providers.xsd  tomcat-users.xml[root@localhost conf]# vim tomcat-users.xml <role rolename="manager-gui"/><role rolename="admin-gui"/>   //在配置文件中加入此行<user username="zdj" password="123456" roles="manager-gui,admin-gui"/>   //加入admin-gui因?yàn)樾薷牧伺渲梦募?，這里需要重啟[root@localhost tomcat]# ./bin/catalina.sh stopUsing CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   NOTE: Picked up JDK_JAVA_OPTIONS:  --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=java.base/java.util=ALL-UNNAMED --add-opens=java.base/java.util.concurrent=ALL-UNNAMED --add-opens=java.rmi/sun.rmi.transport=ALL-UNNAMED[root@localhost tomcat]# ./bin/catalina.sh startUsing CATALINA_BASE:   /usr/local/tomcatUsing CATALINA_HOME:   /usr/local/tomcatUsing CATALINA_TMPDIR: /usr/local/tomcat/tempUsing JRE_HOME:/usrUsing CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jarUsing CATALINA_OPTS:   Tomcat started.[root@localhost tomcat]# ss -antlState     Recv-Q    Send-Q    Local Address:Port       Peer Address:Port   Process    LISTEN    0 128     0.0.0.0:22      0.0.0.0:* LISTEN    0 128[::]:22 [::]:* LISTEN    0 1    [::ffff:127.0.0.1]:8005  *:* LISTEN    0 100       [::1]:8009       [::]:* LISTEN    0 100   *:8080  *:*

[root@localhost tomcat]# cd webapps/host-manager/META-INF/[root@localhost META-INF]# lscontext.xml[root@localhost META-INF]# vim context.xml allow="192\.168\.100\.\d+|127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />//在這個文件中加入要訪問的網段

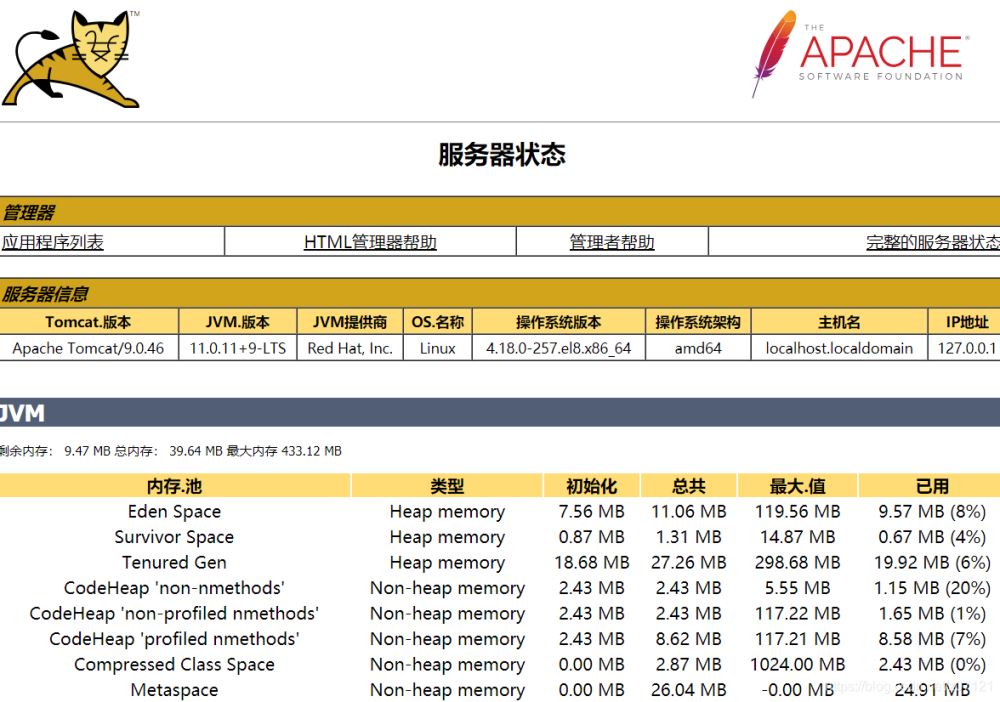

查看一下服務器狀態

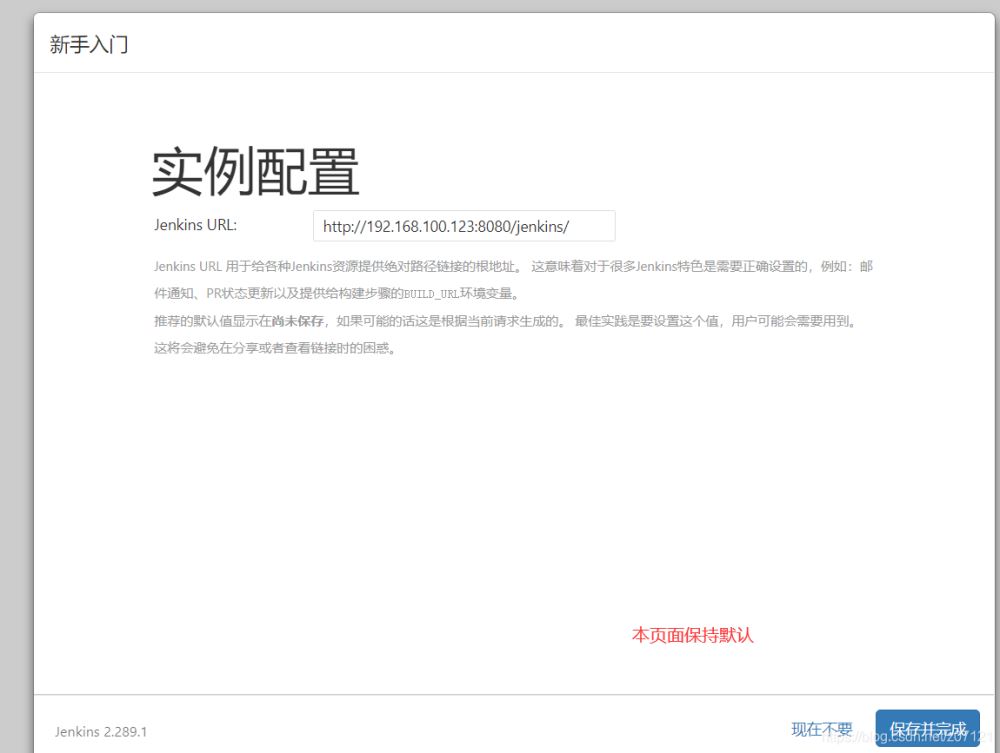

添加jenkins服務

[root@localhost ~]# lsanaconda-ks.cfg  jenkins.war  scripts[root@localhost ~]# cp jenkins.war /usr/local/tomcat/webapps/[root@localhost ~]# cd /usr/local/tomcat/webapps/[root@localhost webapps]# lsdocs  examples  host-manager  jenkins  jenkins.war  manager  ROOT

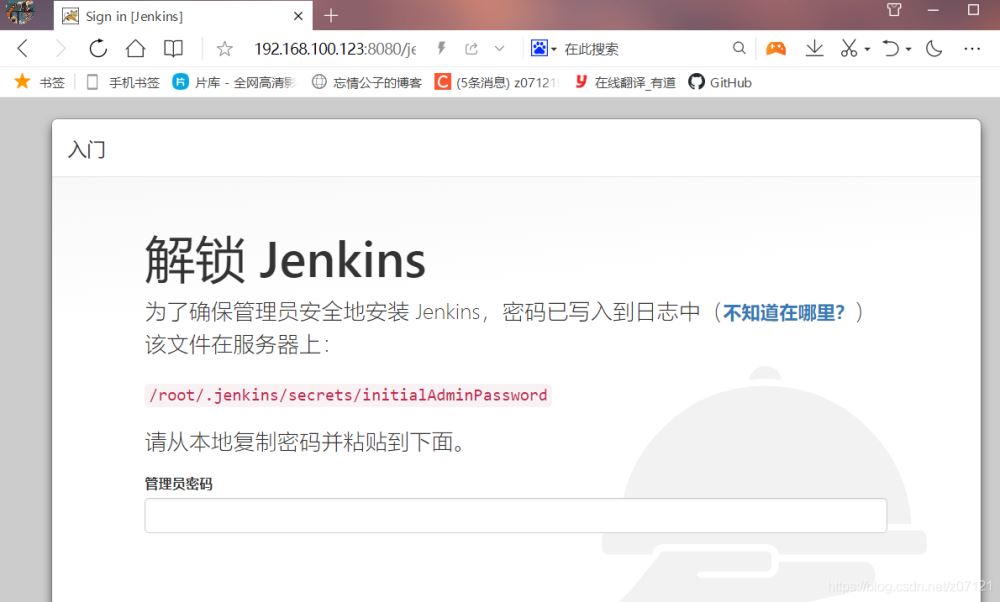

查看密碼[root@localhost webapps]# cat /root/.jenkins/secrets/initialAdminPasswordf9770e45cc67460586e22f049b96e91d

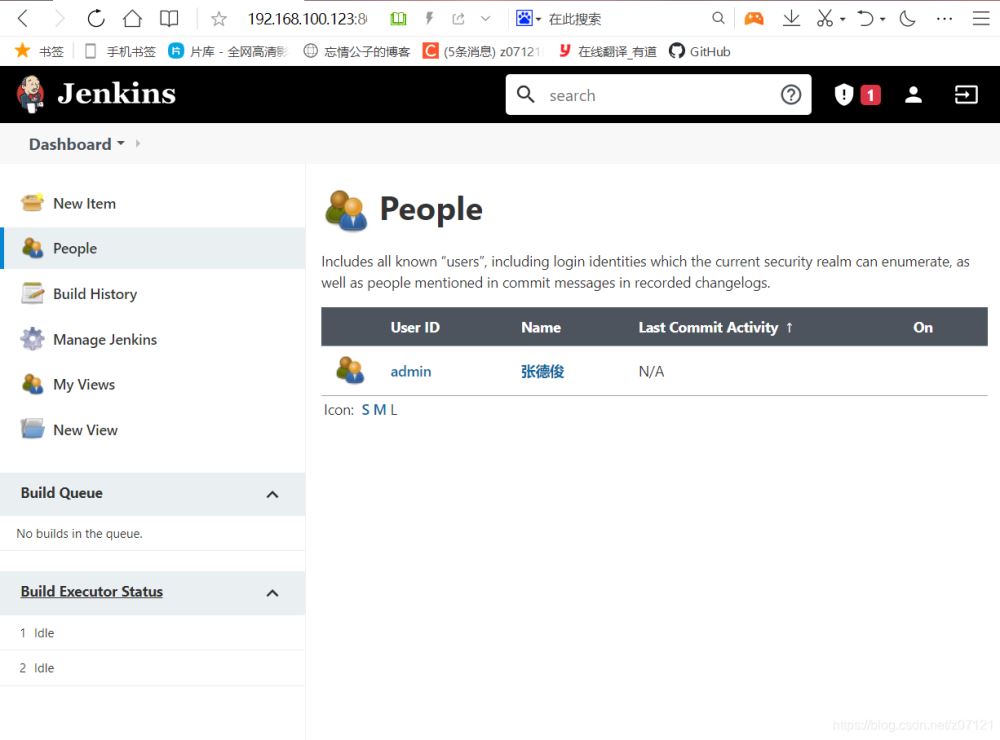

配置完成。

到此這篇關于tomcat下部署jenkins的實現方法的文章就介紹到這了,更多相關tomcat部署jenkins內容請搜索以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持！
